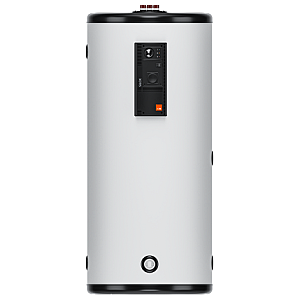

AIC Silox Twin wall cylinder 260ltr TW010260

SKU
134649
Call For Price 0333 772 9865
Overview

AIC Silox Twin wall cylinder 260ltr TW010260

Key Features & Benefits

  • Self-descaling
  • Anti-legionella
  • Stainless steel AISI - 316L
  • DHW tank inspection flange
  • Low heat losses according to DIN 4753/8
  • Thick insulation in injected polyurethane foam (without CFC and HCFC)
  • Connection provided for single electric heater (optional) in the primary water
  • Maximum exchangeable power absorption from 35 to 150 kW

Internal tank with corrugated geometry which maximises the effects of contraction and expansion of the walls limiting the formation of limescale on the large exchange surface. Cylinder for the transfer and store of domestic hot water with high thermal heat exchange area in AISI 316L stainless steel.

Silox models from 180 to 600 have four opposite connections on the primary side to allow power to be supplied from multiple heat sources (boiler, heat pump, biomass, etc.).

Additional Features

Silox cylinders are equipped with a DHW inspection port as standard to facilitate inspection and maintenance.
Integrated control panel, complete with on-off switch, control thermostat, thermometer, and operating indicators.
Light grey external coating in PVC laminated on polyester with anti UV fading properties.
All models have a connection for an optional electric back up heater up to 12kW.

DIMENSIONS

external diameter [A] mm 560
overall height [B] mm 1.767
dimension [C] mm 1.574
dimension [D] mm 214
dimension [E] mm 214
dimension [F] mm 895
empty weight kg 80
Silox Sx 260

GENERAL

total capacity ltr 252

PRIMARY CIRCUIT

primary tank capacity ltr 56
max. primary temperature °C 110
max. operating primary pressure bar 3

SECONDARY (DWH) CIRCUIT

secondary (DHW) tank capacity ltr 196
maximum temperature of (DHW) tank °C 90
maximum pressure of (DHW) tank bar 8

PRODUCT DATA

heat transfer area m2 1.9
standing heat loss W 61
energy efficiency class   B

DHW PERFORMANCE DATA

peak flow at 40°C ltr/10' 770
peak flow at 45°C ltr/10’ 569
peak flow at 60°C ltr/10’ 363
peak flow at 40°C ltr/60’ 2.523
peak flow at 45°C ltr/60’ 1.806
peak flow at 60°C ltr/60’ 1.022
continuous flow at 40°C ltr/h 1.857
continuous flow at 45°C ltr/h 1.508
continuous flow at 60°C ltr/h 881
heating time (from 10 to 60°C) min. 21
primary flow rate m3/h 5.2
Primary: 85°C - DHW Inlet 10°
