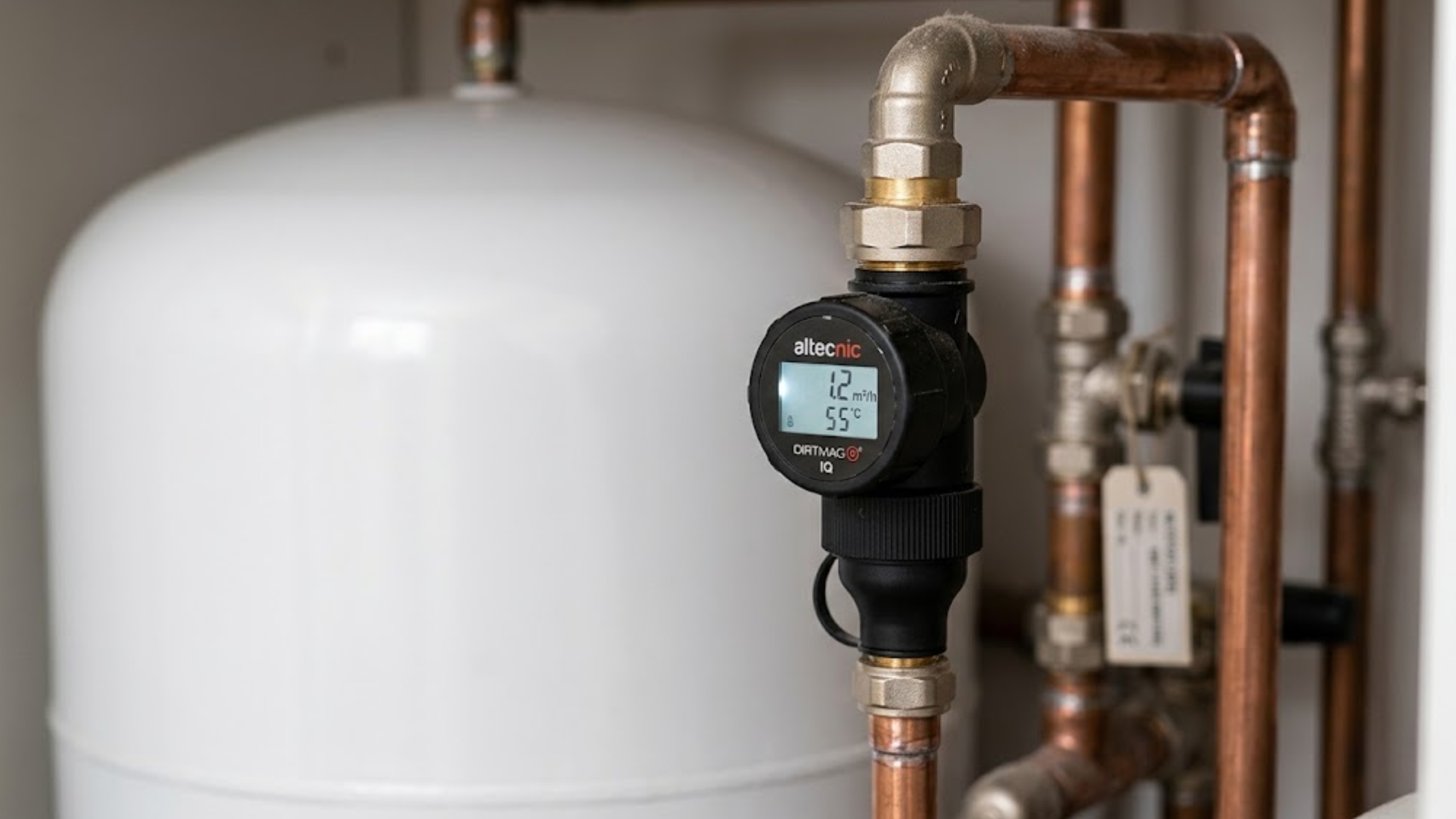

Altecnic Dirtmag IQ: Magnetic Filter Installation On Unvented Cylinder Return Lines

Unvented cylinders accumulate magnetite and debris faster than most heating engineers expect. The return line, where water exits the cylinder after heat exchange, carries this contamination directly back into your system, which degrades efficiency and shortens component life. Executing a professional altecnic dirtmag iq magnetic filter installation intercepts debris before it circulates, while adding a diagnostic capability that transforms routine maintenance into predictive system management.

Why Return Line Filtration Matters for Unvented Cylinders

Unvented cylinders operate under mains pressure, typically between 3 and 5 bar. This pressure accelerates corrosion within the cylinder and connected pipework, generating magnetite particles that suspend in the circulating water. Standard system filters installed on heating circuit returns often miss this contamination entirely. Dedicated filtration on unvented cylinder return lines is essential because they carry the highest concentration of debris from both the cylinder and the heat exchanger coil.

The consequences of neglecting this build-up compound over time. Magnetite deposits on heat exchanger surfaces can reduce thermal transfer efficiency by 15 to 25 percent. If your domestic hot water system is suffering from increased recovery times, debris on unvented cylinder return lines is the most likely culprit.

How the Dirtmag IQ Differs from Standard Magnetic Filters

The Dirtmag IQ combines mechanical filtration with real-time flow monitoring. The magnetic core captures ferrous debris using powerful neodymium magnets arranged in a radial pattern. This design pulls particles as small as 5 microns from the entire flow stream rather than just the outer edges. Using high-strength neodymium magnets ensures that even the smallest metallic flakes are removed before they damage delicate seals.

Think of this filter like a security checkpoint at a high-traffic office building. A standard filter is like a door that only stops people with large bags; it misses the small items. The Dirtmag IQ is like a modern digital scanner that not only stops the smallest prohibited items using neodymium magnets but also counts every person entering and records their temperature. It provides you with a data log of exactly who is passing through and how the traffic flow is changing over time.

This digital monitoring helps protect your water circulation pump from the abrasive effects of fine magnetite. When the flow rate drops 10 percent from your established baseline, the unit tells you it is time for a security check before a total system blockage occurs. Professionals at Heating and Plumbing World regularly recommend this digital upgrade for high-value commercial installations.

Installation Requirements for Unvented Cylinder Returns

Install the unit as close to the cylinder as practical, ideally within 500mm of the outlet connection. This positioning captures debris before it travels through additional pipework where it could settle and cause mechanical wear.

Orientation is critical for performance. You must install the filter vertically with the flow moving upward. This prevents air accumulation in the filter body and ensures debris settles into the magnetic core. Furthermore, ensure the pipe sizing matches exactly. The unit comes in 22mm and 28mm variants. Using reducers to fit a smaller filter creates excessive pressure drop and compromises your heating valve control stability.

Step-by-Step Installation Process

Start by closing the isolation valve on the cylinder outlet and opening the nearest hot tap to verify flow has stopped. Drain the return section using the cylinder drain valve. Cut the return pipe and clean the edges with a deburring tool, as burrs create turbulence that reduces filter efficiency.

Dry-fit the filter to verify alignment without forcing the fittings. Forcing a connection creates stress that leads to leaks under thermal expansion. Apply PTFE tape to threaded connections and tighten compression nuts hand-tight, followed by one full turn with a wrench. If you are integrating the unit with an existing hot water tank, verify that the mounting location provides enough clearance for unscrewing the lower section during future cleaning cycles.

Reading and Interpreting IQ Display Data

The digital display cycles through four data screens: instantaneous flow rate, cumulative volume, inlet temperature, and outlet temperature. Each metric reveals specific system characteristics. Your cumulative volume tracks total water flow since installation, which helps you establish precise cleaning intervals. Most residential systems require a check every 500 to 800 cubic metres of cumulative volume flow.

The temperature differential between inlet and outlet is your most valuable diagnostic tool for the cylinder itself. During a heating cycle, the outlet should be 5 to 8 degrees Celsius lower than the inlet. If this temperature differential between inlet and outlet narrows to 3 degrees or less, the cylinder is not extracting heat effectively, which usually indicates scale buildup on the heat exchanger coil inside your direct hot water cylinder.

Cleaning Frequency and Maintenance Protocol

New systems shed debris heavily during the first year. You should plan to clean the filter monthly during this break-in period. After the system stabilises, quarterly maintenance is usually sufficient.

On a recent project, we tracked a declining flow rate on a Dirtmag IQ even though the filter had been cleaned just two weeks prior. Because we could see the real-time flow data, we identified that the secondary temperature control system was actually the problem. A zone valve was failing to open fully. The IQ feature prevented us from wasting hours searching for a blockage that did not exist.

Integration with System Monitoring and Diagnostics

The data from an altecnic dirtmag iq magnetic filter installation becomes more valuable when tracked over time. Create a simple log sheet to record monthly flow and temperature data. A gradual increase in inlet temperature over several months indicates that the heat source is working harder, suggesting efficiency loss that warrants investigation.

Rapid debris accumulation often points to active corrosion. If you are cleaning the filter every two weeks, test the system water for pH and dissolved oxygen levels. Using the temperature differential between inlet and outlet alongside flow data allows for a complete thermal health check of the unvented system.

Conclusion

Conducting an altecnic dirtmag iq magnetic filter installation on unvented cylinder return lines provides the best possible protection against magnetite damage. The digital display transforms a passive filter into an active monitoring tool, established to detect deviations before they result in system failure.

Regular cleaning and monitoring shift your maintenance strategy from reactive repairs to planned, data-driven care. If you need assistance with interpreting flow data or selecting the correct filter size for your building, reach out to our experts for technical guidance today.
