MainsBoost™ 250 Water Performance System - 3 Vessels inc 22mm Upstream Kit 44463

SKU
112230
£2,807.52
Ship to Calculate Shipping Cost
Add to Wish List Add to Compare
Overview

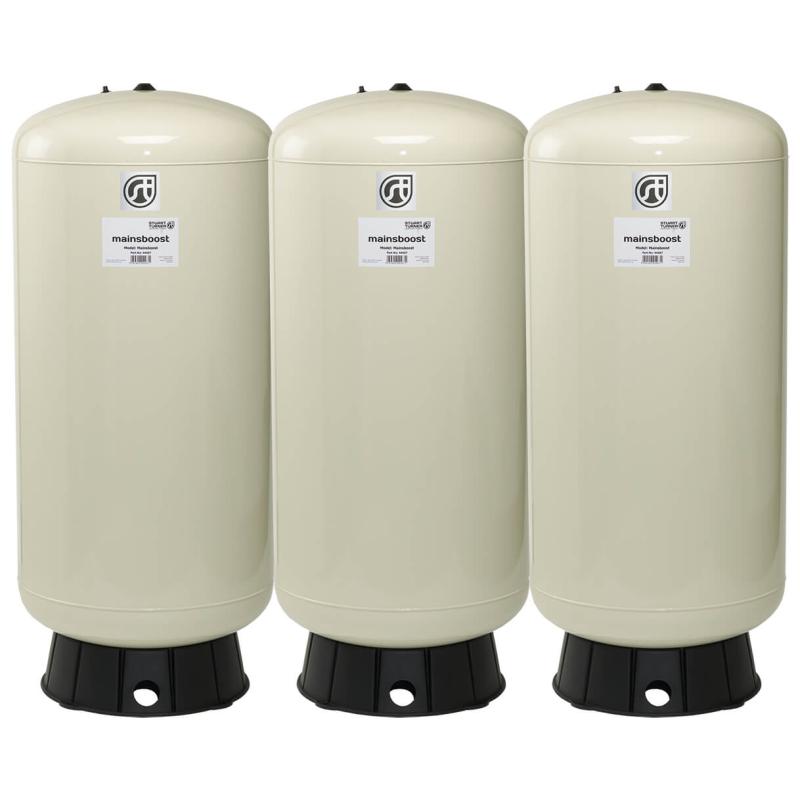

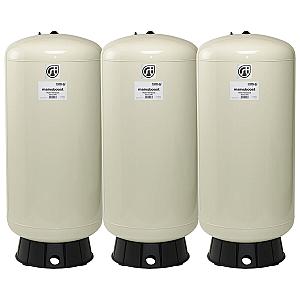

MainsBoost™ 250 Water Performance System - 3 Vessels/22mm Upstream Kit MB 250SV-3-22

The Mainsboost MB 250SV features a nominal vessel size of 240 litres and a pressurised water holding capacity of approximately 132 litres.

Available in single, twin and triple vessel options, each unit is supplied with a comprehensive Upstream Line-In Kit (ULK) featuring 22 mm pipe diameter fittings.

Constructed from an epoxy coated steel body and a highly durable virgin butyl diaphragm, all Mainsboost vessels are WRAS Approved and come with a 5 year guarantee.

MainsBoost™ 250 Water Performance System - 3 Vessels/22mm Upstream Kit MB 250SV-3-22
More Information
EAN Code 5050400444633
General
Product code 44463
Construction Mild steel
Membrane Butyl rubber
WRAS approval 1501305
System patent no. 2349908
Guarantee 5 years
Performance
Maximum working pressure* 1000 kPa (10 bar)
Min/Max operating temperature Min 4 °C / Max 35 °C
Max rated temperature 90 °C
Physical**
Vessel capacity*** 132 litres
Height 1210 mm
Width 535 mm
Depth 535 mm
Weight empty 38.5 Kg
Weight filled 170.5 Kg
Maximim weight 288.5 Kg
ULK Kit 22 mm

*The maximum pressure that can be applied to the cylinder under any installation conditions.

**Vessel capacity, dimensions and weights are per cylinder

***At typical working pressure
