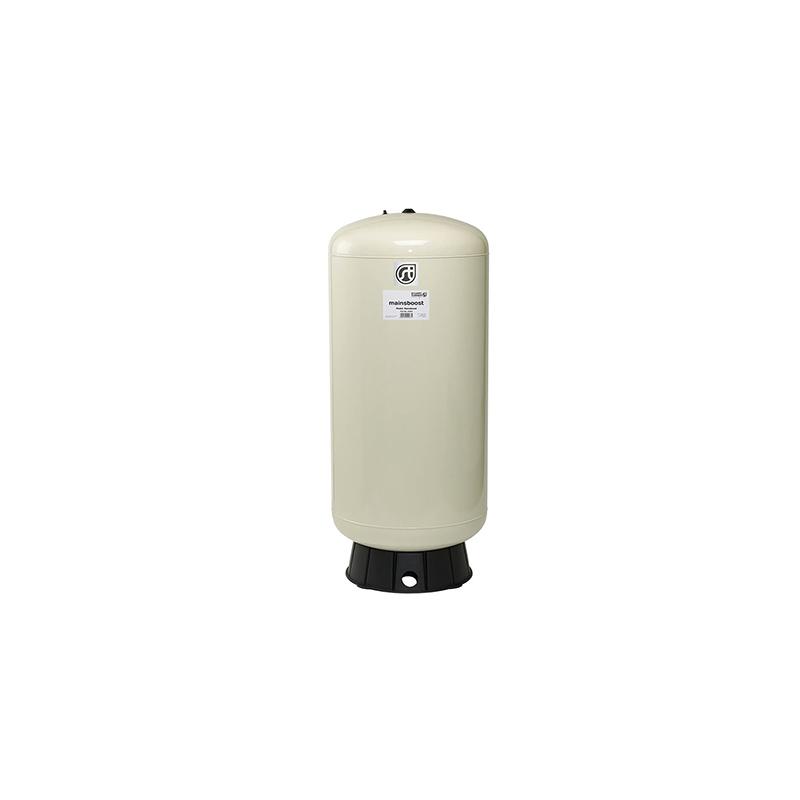

MainsBoost™ 300 Water Performance System - 1 Vessel inc 22mm Upstream Kit MB 300SV-1-22 44464

SKU
112231
£1,220.54
Ship to Calculate Shipping Cost
Add to Wish List Add to Compare
Overview

Mains Water Boosting System

  • The Mainsboost MB 300SV features a nominal vessel size of 300 litres and a pressurised water holding capacity of approximately 174 litres.
  • Available in single, twin and triple vessel options, each unit is supplied with a comprehensive Upstream Line-In Kit (ULK) featuring 22 mm pipe diameter fittings.
  • Constructed from an epoxy coated steel body and a highly durable virgin butyl diaphragm
  • All Mainsboost vessels are WRAS Approved and come with a 5 year guarantee.

Key Features

  • 5 year guarantee
  • Up to 80 litres/minute per vessel
  • 1 x 300 litre pressure vessel
  • Minimal maintenance
  • Silent operation
  • WRAS approved product
  • Consumes no electricity
  • Robust construction
  • Long life butyl diaphragm
  • Integral strainer
  • Comprehensive ULK installation kit included
  • Patent protected
More Information
EAN Code 5050400444640

Technical Specification

Product Code 44464
Guarantee 5 years
WRAS status WRAS Approved Product
WRAS approval 1501305
Approvals CE
Patent reference 2349908
Pressure vessel quantity 1
Pressure vessel nominal size (litres) 300
Pressure vessel usable capacity (litres) 174
Upstream Line-in Kit (mm) 22 mm
Mounting Floor
Maximum working pressure (kPa / bar)* 1000 kPa / 10 bar
Min / Max operating temperature (°C) Min 4 °C / Max 35 °C
Max rated temperature (°C) 90 °C
Pressure vessel Epoxy coated mild steel
Membrane Butyl rubber
Connection - inlet 22 mm
Connection - outlet 22 mm
Typical Noise dB(A) Silent
Width (mm) 535
Depth (mm) 535
Height (mm) 1505
Weight - including fittings (Kg) 47
Weight - filled (Kg) 221
Weight - maximum (Kg) 347

Insulation jacket

Optional
GTIN 13 DIGIT 5050400444640
