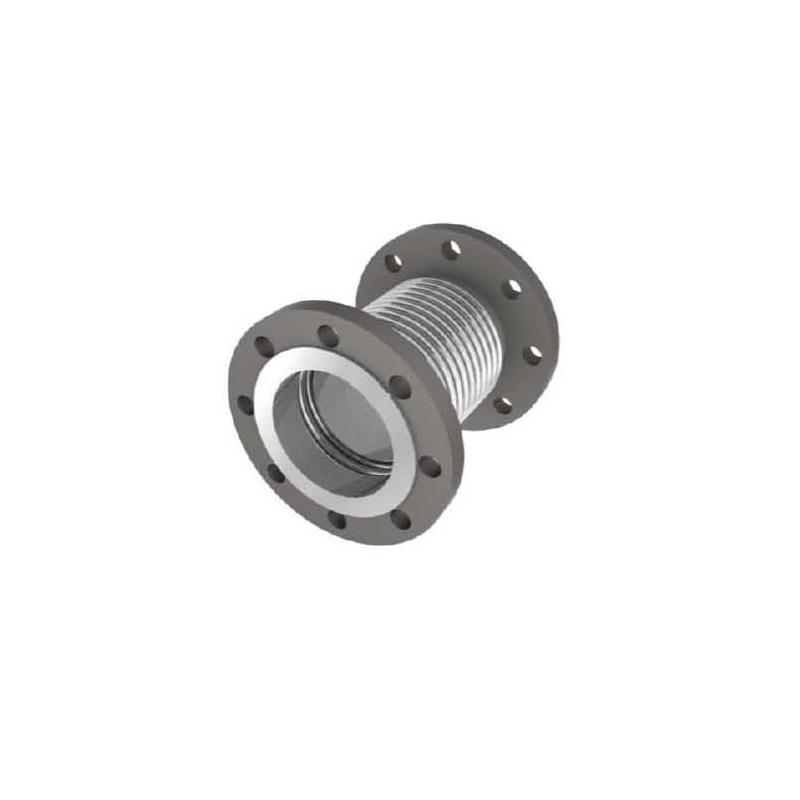

Proline Pro-Bel AX2 Flanged Axial Linear Expansion Bellows 200mm
Overview
Working Conditions
Pressure: 16 Bar
Temperature: 120 Degrees C
Test: 1.5x Working
The anchor loads generated by this type of Axial Expansion Compensator are high. A bracket guide with a low frictional resistance should be used
EXCO Type AX2 Axial Bellows 200mm
Designed to accept linear expansion on copper and stainless steel pipe systems.
Standard product details are shown below, although these may vary dependant upon application and PED requirements.
Key Points
Require Full Guiding
Available for any Temperature or Pressure
Supplied with CE Certs where Applicable
Internal Flow Liner as Standard
Bellows are Pre-Cold Drawn
Material Specification
Flangers: carbon Steel PN16 With Stainless steel facings (Stainless steel to all wetted areas)
Convolutions: 316 Stainless Steel
Internal Sleeve: 316 Stainless Steel
PED Requirements
All Bellows supplied are manufactured and certified in accordance with EU PED Legislation and as such carry the relevant CE certification where required.
Size (mm) Axial Compression (mm) Installed Length Effective Area cm² Force to Compress N/mm Part Number
200nb
70
275
419
179
AX2/200/PN16
