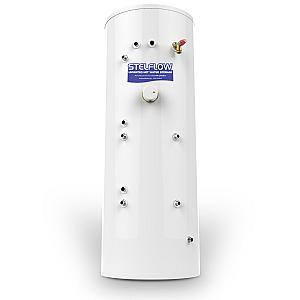

Stelflow 210 Litre Twin Coil Cylinder TRSMVS-0210LFC

SKU
122630
£996.70
Ship to Calculate Shipping Cost
-
+

Add to Wish List Add to Compare
Overview
Product Code: TRSMVS-0210LFC
Specifications Symbol Units
Energy Efficiency Class     C
Standing Heat Loss S W 62
Hot Water Storage Tank Volume V L 210

Dimensions
Height  (mm) 1320
Diameter  (mm) 545
C  (mm) 195
D  (mm) 310
E  (mm) 310
F  (mm) 725
G  (mm) 1070
H  (mm)
I  (mm) 460
More Information
Delivery Next Business Day
EAN Code 5060162700175
Product Specification
Item category code Stainless Product group code STELFLOW
Warranty terms  (Year) 25Y Max working pressure  (Bar) 3
Heat loss  (kWh_24h) 1.4 Energy usage  (W) 58
Reheat performance  (W) 19.5 Brand STELFLOW
Cylinder style SOLAR Capacity  (Ltr) 180
Actual capacity  (Ltr) 180 Unit weight empty  (kg) 45
Unit weight full  (kg) 216 Max mains water pressure  (Bar) 10
Operating temp t x0026 p  (C) 95 No heat exchangers 2
No immersions 1 Immersion spec kw 230v 3KW@230V
Coil 1 rating  (kW) 15.9 Coil 1 flow lpm 80c 45
Coil 1 surface area  (m²) .66 Coil 1 fluid content  (Ltr) 3.61
Coil 1 resistance  (Bar) .2 Coil 1 max prim pressure  (Bar) 3.5
Coil 2 rating  (kW) 18.85 Coil 2 flow lpm 80c 45
Coil 2 surface area  (m²) .66 Coil 2 resistance  (Bar) .2
Coil 2 max prim pressure  (Bar) 3.5 Dedicated solar volume  (Ltr) 90
Solar coil COIL 1 Tested to standard BS EN 12897:2006
Max fill pressure  (Bar) 3 Expansion vessel pressure  (Bar) 3
Operating pressure t x0026 p  (Bar) 7 Dual stat label 60
Erp profile 0 Energy usage yearly  (kWh) 0
Cylinder material LDX 2101 Thermal insulation DENSE PU FOAM
Outer casing COATED MILD STEEL Coil material 316L STAINLESS STEEL
