Application

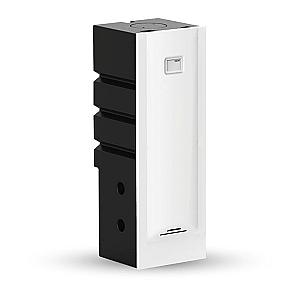

The Aquaboost iBoost F200-100-45 CAT 5 water pressure and flow boosting system features a weir overflow making it suitable for use in applications where the risk of backflow contamination from Category
5 fluids exists.
| Delivery | 2 to 3 Days |
|---|---|
| EAN Code | 5050400466772 |
| General | |
| Product code | 46677 |
| Guarantee | 3 years |
| Features | |
| Pump control system | Fixed speed, pressure switch |
| Control interface | Standard controls |
| Dry run protection | |
| Noise | 62 dB(A) |
| Fluid risk compatibility | CAT 5 |
| Air gap | Type AB |
| Pressure vessel | 8 litres |
| Performance | |
| Maximum head (closed valve) | 4.5 bar (450 kPa) |
| Maximum flow rate | 100 l/min |
| Maximum inlet pressure (tank fill valve) | 7 bar (700 kPa) |
| Maximum static outlet head | 15 metres |
| Ambient air temperature (Min - Max) | 4 °C - 30 °C |
| Water tank | |
| Nominal size | 220 litres |
| Usable capacity | 200 litres |
| Fill rate | 20 l/min* |
| Connections | |
| Cold water inlet | G ½ male |
| Cold water outlet (pump) | G ¾ male |
| Cold water outlet (flexible hose) | G ¾ female x 22 mm push-in (220 mm long) |
| Overflow (compression fitting) | G ¾ |
| Materials | |
| Break tank | Polyethylene |
| Front panel | Acrylic capped ABS |
| Pump body | Brass / stainless steel |
| Pump impeller | Stainless steel |
| Pump | |
| Pump type | Multistage centrifugal |
| Duty rating | Continuous (S1) |
| Pump motor type | 1 phase induction (thermal trip, auto-reset) |
| Electrical | |
| Power supply/phase/frequency | 230 V a.c./ 1 / 50 Hz |
| Current (full load) | 5.5 Amps |
| Power consumption | 1260 Watts |
| Fuse rating | 10 Amps |
| Power cable (pre-wired) | 3.0 metres |
| Physical | |
| Depth | 529 mm |
| Width | 536 mm |
| Height | 1504 mm |
| Empty weight | 55 Kg |
| Filled weight | 255 Kg |
*Assumes 1 bar inlet pressure.
