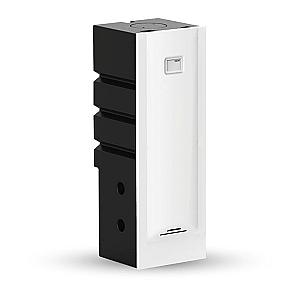

Stuart Turner Mainsboost iBoost V200-100-45 46711

SKU
128368
£1,997.58
Overview

Aquaboost iBoost V200-100-45

iBoost V200 features the same capabilities as the iBoost F200 unit with the added benefits of an advanced variable speed pump control system. This enables the unit to supply water at a constant programmable water pressure as the water demands on the system increase.

  • Reduces noise by adjusting pump speed to meet actual water demand
  • Provides a 'soft start' and maintains stable water pressure when additional outlets are opened
  • Optimises pump efficiency and lifespan
  • Reduces power consumption
  • Control panel and status indicators

Applications

Boosting cold mains water pressure and flow in larger domestic and light commercial applications.

Aquaboost iBoost V200-100-45

The iBoost V200 features a programmable variable speed pump control system capable of generating pressures of up to 4.5 bar and flow rates of up to 100 litres per minute.

More Information
Delivery 2 to 3 Days
EAN Code 5050400467113
General
Product code 46711
Guarantee 3 years
WRAS approval Approved materials
Features
Pump control system Variable speed, pressure transducer
Control interface Programmable controls**
Dry run protection
Noise 57 dB(A)
Fluid risk compatibility CAT 3 , CAT 4
Air gap Type AF
Pressure vessel 8 litres
Performance
Maximum head (closed valve) 4.5 bar (450 kPa)
Maximum flow rate 100 l/min
Maximum inlet pressure (tank fill valve) 7 bar (700 kPa)
Maximum static outlet head 15 metres
Ambient air temperature (Min - Max) 4 °C - 30 °C
Water tank
Nominal size 220 litres
Usable capacity 200 litres
Fill rate 20 l/min*
Connections
Cold water inlet G ½ male
Cold water outlet (pump) G ¾ male
Cold water outlet (flexible hose) G ¾ female x 22 mm push-in
(220 mm long)
Overflow (compression fitting) G 1¼
Materials
Break tank Polyethylene
Front panel Acrylic capped ABS
Pump body Brass / stainless steel
Pump impeller Stainless steel
Pump
Pump type Multistage centrifugal
Duty rating Continuous (S1)
Pump motor type Induction (current overload sensor)
Electrical
Power supply/phase/frequency 230 V a.c./ 1 / 50 Hz
Current (full load) 6.8 Amps
Power consumption 996 Watts
Fuse rating 10 Amps
Power cable (pre-wired) 3.0 metres
Physical
Depth 529 mm
Width 536 mm
Height 1504 mm
Empty weight 56 Kg
Filled weight 256 Kg
