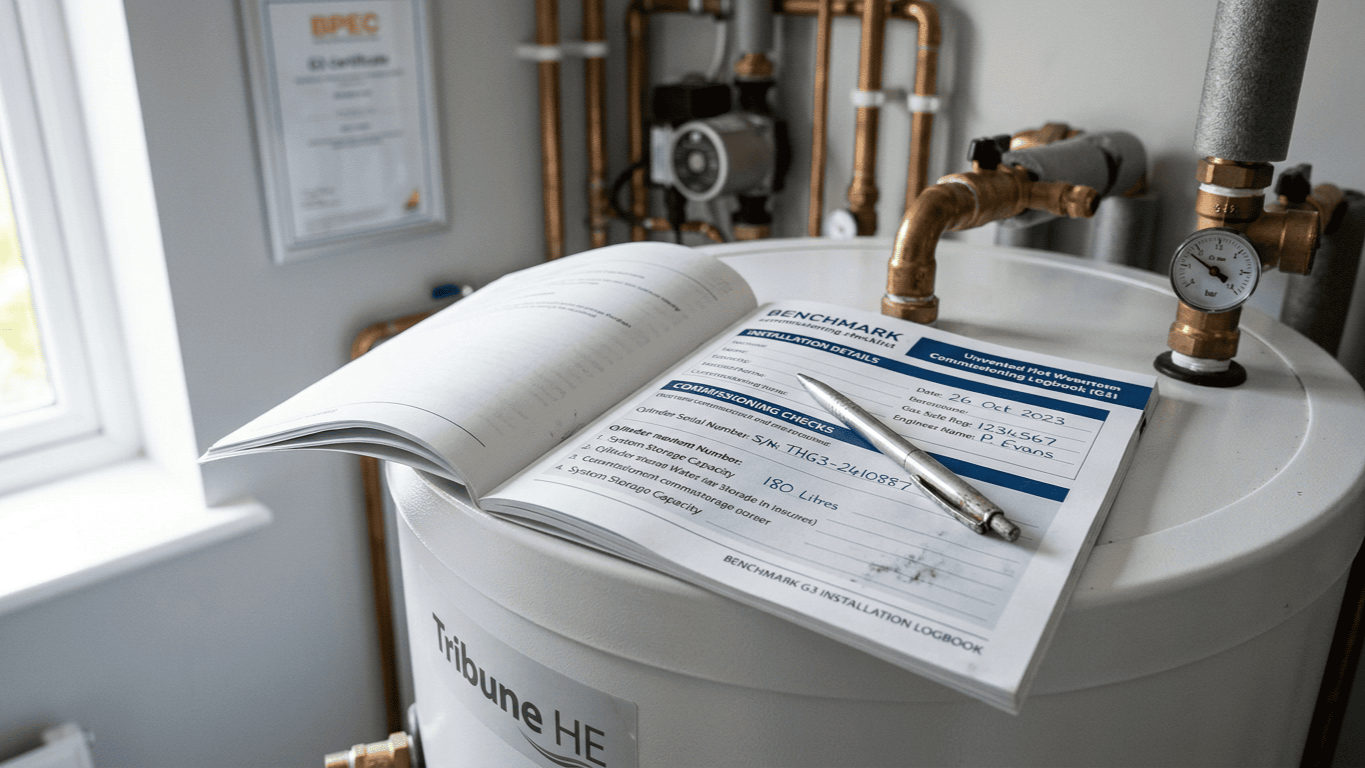

Benchmark Commissioning Logs for G3 Installations: Required Documentation

Every G3 unvented hot water system we install generates a paper trail that matters far more than most installers realise. Completing benchmark commissioning logs for g3 installations isn't just bureaucratic box-ticking. It acts as your legal proof that the installation meets Building Regulations. Furthermore, it provides your first line of defence if something goes wrong.

We've seen installations fail compliance audits not because the work was poor, but because the documentation was incomplete. A £4,000 system can become worthless without the right paperwork. That is the reality of G3 work today.

Ultimately, the Benchmark log serves three critical functions that protect both the installer and the property owner:

• It demonstrates compliance with G3 regulations for unvented systems.
• It provides a detailed record for future maintenance engineers.
• It resolves potential disputes quickly and professionally.

What Makes G3 Documentation Different

Standard heating installations require basic commissioning records. However, G3 unvented systems demand significantly more rigorous documentation. These systems operate under mains pressure and store large volumes of water at high temperatures.

The consequences of failure aren't trivial. We are dealing with potential scalding injuries, property damage from uncontrolled discharge, and in extreme cases, vessel rupture. Think of the Benchmark log like a vehicle's MOT certificate and service history combined; without it, you can't prove the system is roadworthy or safe to operate.

Building Regulations Approved Document G specifically requires that unvented hot water storage systems are installed by competent persons. It also mandates that the building control notification is completed accurately. The Benchmark log provides the vital evidence that both of these requirements have been met. Without proper building control notification, the installation is legally incomplete.

Competent person schemes, like BPEC G3 certification, allow installers to self-certify their work. However, this is only possible if the documentation is perfect. Miss a critical entry on the log, and you've potentially invalidated your certification for that installation.

Finally, the Health and Safety Executive (HSE) also takes an active interest in these installations. Following serious incidents, they've investigated situations where poor documentation contributed to maintenance failures. Consequently, your records might be reviewed by HSE inspectors or solicitors years after you've completed the work, making proper building control notification vital.

Core Sections of the Benchmark Log

The benchmark commissioning logs for g3 installations contain several mandatory sections that go beyond standard heating documentation. Each section captures specific technical details. Future maintenance engineers will rely on this data when ordering necessary replacement supplies from Heating and Plumbing World.

System Details and Specification

This opening section records the fundamental information about the installation. First, you'll document the manufacturer, model number, and the cylinder serial number. Next, you must record the installation date and the name of the G3-qualified installer who performed the work.

The serial number proves particularly important for warranty claims and product recalls. Manufacturers occasionally issue safety notices for specific production batches. Without the cylinder serial number recorded, tracking whether a system is affected becomes nearly impossible.

Accurate system storage capacity matters for compliance calculations. Building Regulations specify maximum stored water temperatures and require temperature limiting devices. As a result, the system storage capacity you record must match the actual Tribune HE pre-plumbed cylinder installed, not what was specified on the original quote.

Safety Device Verification

This section represents the heart of G3 compliance documentation. Every single component must be individually identified, tested, and recorded. We're documenting the safety device specification to ensure each protective measure functions correctly and meets the manufacturer's parameters.

Temperature relief valves require specific attention during this step. The log should record the detailed safety device specification, including the valve manufacturer, model, pressure rating, and temperature rating. We test each valve during commissioning and record that it operates freely and discharges correctly.

Pressure relief valves get similar treatment. Document the set pressure, verify the discharge pipe compliance meets G3 requirements, and confirm the valve operates when manually tested. The discharge pipe termination point should be noted, as it must be visible and positioned where discharge won't cause danger.

Expansion vessels also need their pre-charge pressure recorded. This measurement proves critical for future servicing. On a recent commercial project, an engineer skipped recording the pre-charge pressure to save time. Six months later, the relief valve started venting constantly, and tracing the fault took hours because we had no baseline data to compare against. Therefore, we record both the capacity and the measured pre-charge pressure for the Worcester expansion vessel.

Temperature Settings and Controls

G3 installations require careful temperature management to balance Legionella control with scalding prevention. The log must record multiple temperature measurements and control settings.

Stored water temperature should be documented at the time of commissioning. Most systems store water at 60°C to 65°C to control Legionella bacteria while minimising scaling. We measure this at the cylinder stat pocket using a reliable Gledhill GT149 sensor, rather than relying on measurements at the outlets.

Outlet temperatures at taps and showers must not exceed 48°C in certain circumstances. Where thermostatic mixing valves are fitted for scalding protection, we record the mixed outlet temperature at the most remote tap after the system has stabilised.

Pressure Testing Results

Every installation undergoes pressure testing before commissioning. You should record the test pressure applied and the overall duration of the test.

We document any pressure drop observed during the test period. Zero drop indicates a sound installation. Any measurable drop requires immediate investigation and rectification of components, like the Worcester condensing trap washer set, before the system can be commissioned.

The test medium matters too, so record whether you used water or air for testing. Water testing is generally preferred for final commissioning because it reveals even minor weeps that air testing might easily miss.

Discharge Pipe Compliance

The discharge pipework from safety devices must meet specific requirements laid out in G3. The documentation should confidently confirm discharge pipe compliance, rather than just vaguely describing the installation.

First, document the discharge pipe material. Next, record the exact pipe diameter. This must be at least the size of the safety device outlet, and often needs to be larger depending on pipe length and routing.

Tundish location gets recorded to confirm it's visible, accessible, and positioned correctly. Additionally, if you've combined relief valve discharges, reference the calculation method used to determine the final size to ensure full discharge pipe compliance.

Additional Documentation Requirements

Beyond the standard sections, these installations generate additional paperwork. This extra documentation needs to be handed over with the main log.

Manufacturer Instructions

We always provide the property owner with the manufacturer's full installation and servicing instructions. These documents contain specific information about the installed model. They include vital details like service intervals, replacement part specifications, and troubleshooting guidance for components like the Worcester flue gas limit sensor.

Building Regulations Compliance Certificate

If you're working under a competent person scheme, you'll issue a Building Regulations Compliance Certificate. This certificate gets registered with the relevant authority and a copy goes directly to the property owner. The certificate references the log as supporting documentation.

Schematic Diagram

Complex installations benefit greatly from a schematic diagram showing the system layout, valve locations, and control wiring. While not strictly mandatory for simple cylinder replacements, providing a basic schematic prevents confusion during future servicing. Hand-drawn schematics are perfectly acceptable if they are clear and legible.

Common Documentation Failures

After hundreds of installations, we've identified recurring documentation errors that cause significant problems down the line. These frequent failures include:

• Incomplete serial numbers: Installers often record the cylinder model but forget the serial number. When a manufacturer issues a safety recall, tracking affected units becomes impossible without the cylinder serial number.
• Missing pre-charge pressures: Engineers attending breakdowns can't determine if the expansion vessel has lost pressure or was incorrectly commissioned without the original reading.
• Undocumented temperature testing: If a scalding incident occurs, you need documented evidence of the outlet temperature when commissioned. Otherwise, you're relying entirely on memory in a legal dispute.
• Vague discharge pipe descriptions: Writing that pipework is "fitted correctly" doesn't cut it. Inspectors want measurable facts regarding pipe material, diameter, routing, and tundish location.

Digital vs Paper Benchmark Logs

The scheme now offers digital logs alongside traditional paper booklets. Both formats are acceptable, but each has practical implications for long-term documentation.

Paper logs remain the most common format. They're filled in on-site, signed, and left with the property owner immediately. However, the main weakness of paper logs is durability. We've regularly returned to properties where the log has been lost, damaged, or thrown away during kitchen refits.

Conversely, digital logs offer better long-term storage and easier retrieval. Several platforms allow installers to complete records on tablets, then email a PDF to the property owner. The installer retains a permanent copy, which proves invaluable if the owner loses their original documentation.

How Long Documentation Must Be Retained

Property owners should keep logs indefinitely, as they're part of the property's permanent record. When selling a property, incomplete heating system documentation can delay or even completely derail transactions.

As the installer, you're not legally required to retain copies indefinitely. However, we strongly recommend keeping digital records for at least six years. This securely covers the limitation period for most legal claims in England and Wales.

Competent person scheme operators typically require you to retain installation records for audit purposes. BPEC, for example, may request documentation for installations completed several years ago. If you can't produce the records, you risk losing your scheme membership entirely.

What Happens When Documentation Is Missing

We've been called to properties where previous installers left no benchmark commissioning logs for g3 installations or provided incomplete records. The consequences range from inconvenient to potentially dangerous:

• Failed warranty claims: Manufacturers routinely reject claims where the installer can't prove correct commissioning. A £300 warranty claim for a failed stat gets denied because nobody can produce the log showing the installation was done by a qualified engineer.
• Insurance issues: If a valve discharges and causes water damage, insurers investigate whether the system was correctly installed. Missing documentation raises immediate red flags and leads to claim rejections.
• Building Control problems: When buyers' solicitors request building regulation certificates during property sales, missing documentation can halt the transaction. Sellers sometimes need to pay for costly retrospective inspections.
• Increased safety risks: Without knowing the original safety device specification, subsequent engineers can't properly maintain the system. We've encountered installations where incorrect replacement parts were fitted simply because nobody knew the original specification.

Conclusion

Properly completing benchmark commissioning logs for g3 installations represents far more than administrative paperwork. It's your legal evidence of compliance, your protection against future disputes, and the critical reference document that every subsequent engineer will need.

Always complete every section with specific, measurable information. Record serial numbers, test results, pressure readings, and system storage capacity. Document the components in detail and confirm the installation complies with actual dimensions and routing descriptions.

Keep digital copies of everything you install. The few minutes spent photographing nameplates, scanning completed logs, and filing digital records will save you hours of grief when questions arise years later.

For property owners, treat your documentation like your boiler warranty or electrical certificates. File it safely, keep it with the property, and ensure it's available when you sell. The paperwork that proves it was installed correctly isn't optional; it's essential, so contact us if you need expert assistance.
