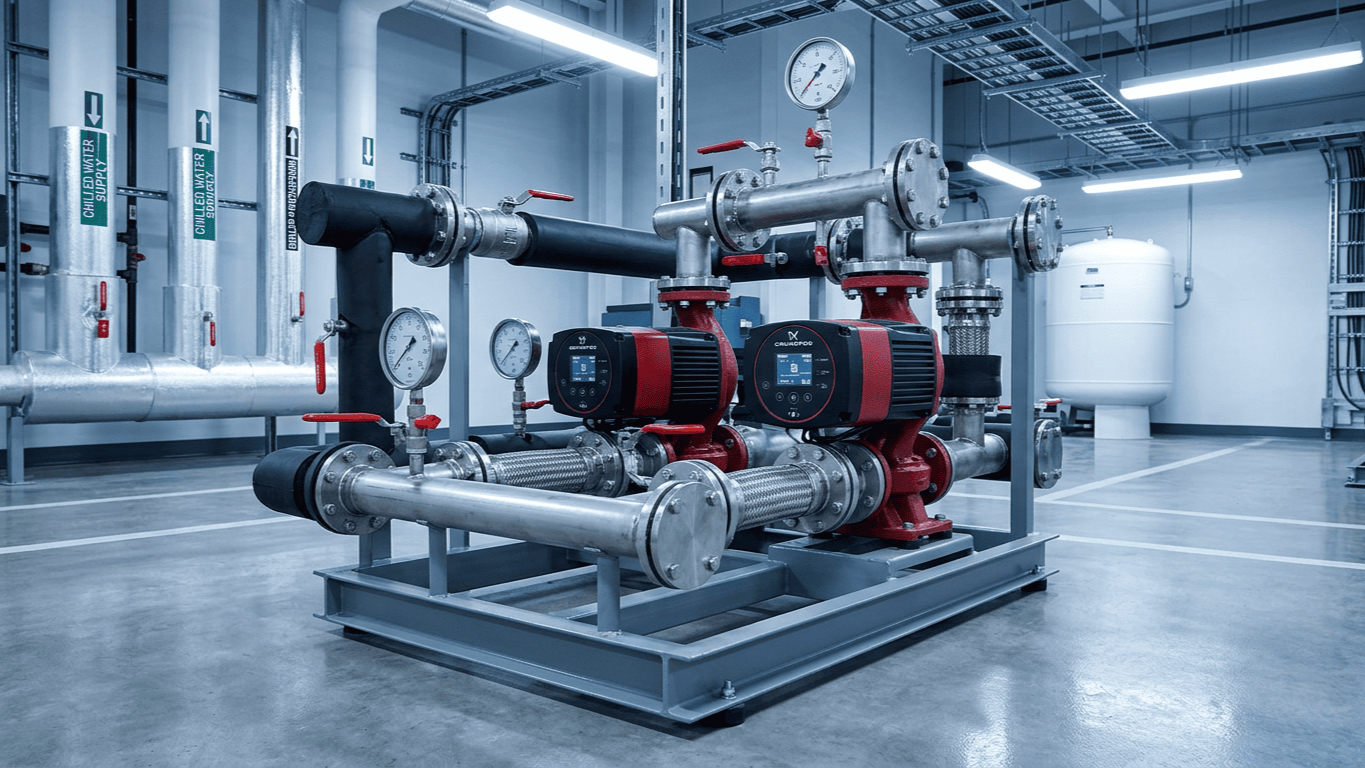

- Grundfos MAGNA3 Pre-Assembled Pump Packages: Installation Time Savings
Commercial HVAC contractors know the reality: installation time directly impacts project profitability. Every hour spent assembling pump systems on-site eats into tight margins. Grundfos MAGNA3 pre-assembled pump packages change this equation entirely.
These pre-assembled packages arrive ready to install. There is no tedious on-site assembly of valves, gauges, or isolation equipment. What typically takes a full day of pipework and component fitting now takes a mere two hours. That is a 75% reduction in labour time, based on consistent feedback from HVAC contractors who have permanently made the switch.
What Makes Pre-Assembly Different
Traditional pump installations require contractors to source individual components. You've got the pump, isolation valves, pressure gauges, drain valves, and all necessary pipework. Each piece arrives separately. Your team then spends exhausting hours fitting, testing for leaks, and troubleshooting connections in poorly lit plant rooms.
Grundfos MAGNA3 pre-assembled pump packages eliminate this process. Sourced through specialists like Heating and Plumbing World, the MAGNA3 arrives as a complete, tested unit. Engineers assemble and pressure-test every package at the factory. The unit leaves their facility only after passing rigorous quality checks.
Here is what comes pre-installed:
- MAGNA3 circulator pump with an integrated differential pressure sensor
- Isolation valves on both inlet and outlet sides
- Drain valves for system maintenance
- Pressure gauges for system monitoring
- Flexible connectors to absorb vibration
- Mounting brackets for secure installation
Think of a pre-assembled pump package like a modern smartphone. You wouldn't buy the processor, screen, and battery separately to solder them together on your desk. You buy a factory-sealed, calibrated device that works immediately upon power-up.
Real Installation Time Comparisons
Tracking installation times across numerous commercial projects reveals massive differences between traditional component-by-component installations and Grundfos MAGNA3 pre-assembled pump packages.
Component delivery and inventory checks take roughly 1.5 hours. Pump mounting and alignment require 2 hours. Valve and gauge installation takes 3 hours, whilst pipework connections consume another 2.5 hours. Finally, pressure testing and leak checks take 1.5 hours, bringing the total to 10.5 hours.
Conversely, the pre-assembled package delivery and positioning require just 30 minutes. Mounting to existing pipework takes 1 hour, electrical connection requires 30 minutes, and system commissioning finishes the job in another 30 minutes. That brings the total to a mere 2.5 hours.
Labour Cost Impact
Let us put concrete numbers to this. HVAC installation labour in commercial settings typically costs between £85 and £120 per hour when you factor in wages, overheads, and equipment.
A traditional installation costs approximately £945. A pre-assembled installation costs around £225. This yields a massive saving per pump of £720. On larger projects with multiple stations, or when installing a secondary water circulation pump, these savings compound rapidly. A commercial building requiring six pump stations saves over £4,300 in labour costs alone. That is before considering the schedule compression benefits.
Fewer Site Complications
Anyone who has installed pumps on active construction sites knows the severe challenges involved. Limited workspace, competing trades, material storage constraints, and weather exposure all create frustrating delays.
On a recent hospital ward upgrade, an installation team originally scheduled three full days to pipe and assemble a heavy-duty booster pump system alongside new circulators. By switching to pre-assembled skid units instead, they dropped the machinery into place, secured the flanges, and had the entire plant room operational before lunchtime on day one.
Pre-assembled packages reduce your site footprint dramatically. Instead of staging dozens of individual components, you need space for one compact unit. The reduced installation window means less exposure to site delays. When replacing an existing pump system in an operational building, minimising downtime matters. A 2.5-hour installation window makes the difference between a minor inconvenience and significant disruption.
Quality Control Advantages
Factory assembly provides quality control that site installation simply can't match. Grundfos assembles these premium heating pumps in controlled conditions with calibrated tools and highly trained technicians. Every joint gets torqued to exact specifications. Every connection gets pressure-tested at levels vastly exceeding normal operating conditions.
Site assembly inevitably introduces variables. Different technicians have different approaches. Tools might not be perfectly calibrated. Weather conditions affect thread sealant curing times. Time pressure frequently leads to dangerous shortcuts. The pre-assembled approach eliminates these inconsistencies entirely, ensuring factory-grade quality on every installation.
Commissioning Simplification
The intelligent controls simplify commissioning significantly. The integrated differential pressure sensor automatically adjusts the speed to maintain system requirements. There is no manual balancing and no iterative testing and adjustment.
Connect the pump to your building management system via Grundfos GO Remote. Set your target differential pressure, and the unit handles the rest. Traditional installations require commissioning engineers to spend hours balancing flow rates and fine-tuning pump speeds, often battling against complex third-party heating controls. The intuitive AUTOADAPT function performs this automatically, continuously optimising performance as building loads change.
Maintenance Access Built In
Pre-assembled packages include maintenance features that field installations often omit due to strict time constraints. The isolation valves let maintenance teams service the pump without draining the entire system. Drain valves simplify winterisation or system modifications.
These features might seem minor during the initial installation, but they save significant time over the system's operational lifespan. Connecting a diagnostic tool via Grundfos GO Remote is swift and painless. A maintenance call that would normally require a half-day system shutdown now takes a mere 90 minutes.
Project Schedule Benefits
Installation time savings translate directly to schedule compression. When you can install a high-quality unit utilizing appropriate plumbing fittings and supplies in a quarter of the traditional time, you gain immense flexibility.
You can start later in the construction sequence without delaying completion. You can respond faster to design changes that affect pump specifications. You also drastically reduce coordination conflicts with other trades competing for the same space. That schedule gain lets the project team absorb earlier structural delays without pushing the ultimate completion date or facing punitive liquidated damages.
Warranty Confidence
Manufacturer warranties cover the entire pre-assembled package as a single cohesive unit. When components are factory-assembled and tested together, warranty claims become incredibly straightforward. There is no debate about whether a leak originated from the pump or from poor on-site pipework installation.
Field-assembled systems create grey areas. Did the pump fail, or did improper installation cause the problem? Finding genuine boiler replacement parts to fix a botched field assembly is deeply frustrating. Pre-assembled packages completely eliminate this costly uncertainty.
Sizing And Specification
Grundfos MAGNA3 pre-assembled pump packages come in configurations covering most commercial HVAC applications. Flow rates from 0 to 140 m³/h and head pressures to 16 metres handle everything from small office buildings to large commercial complexes.
The key is accurate load calculation during the design phase. A highly efficient IE5-rated motor provides an excellent operational buffer, but over-sizing creates energy waste whilst under-sizing causes comfort problems. Proper initial sizing remains absolutely critical.
Energy Efficiency Considerations
While the primary focus rests on installation time savings, the exceptional energy efficiency deserves major mention. The pump's IE5-rated motor and intelligent controls typically reduce energy consumption by 60% to 80% compared to standard fixed-speed pumps.
On a 50kW traditional pump running 6,000 hours annually at £0.12/kWh, that represents roughly £36,000 in annual savings. The pre-assembled package's higher upfront cost pays back within months purely on energy savings, long before considering the massive installation labour savings.
Real-World Application Example
A major mechanical contractor recently completed a four-storey commercial office building upgrade. The project required three pump stations: one for each floor's HVAC zone, plus a dedicated package for the ground-floor retail space.
Traditional installation would have required 31.5 hours of labour. The pre-assembled approach took just 7.5 hours total. The building owner now benefits from the AUTOADAPT function adapting to specific floor requirements. It automatically adjusts to building occupancy patterns, reducing energy consumption during low-demand periods without any manual intervention.
Making The Switch
Contractors accustomed to component-by-component installation sometimes hesitate to adopt pre-assembled packages. The upfront cost looks higher when you evaluate a single line item rather than distributed component costs.
However, the analysis needs to account for the total installed cost. Add your typical labour hours to the component costs. Factor in the risk of installation errors requiring massive rework. When you run these numbers accurately, pre-assembled packages typically show a 15% to 25% lower total installed cost, even before considering the immense energy savings.
Conclusion
Pre-assembled pump packages fundamentally change the installation economics for commercial HVAC contractors. The massive reduction in installation time delivers immediate, tangible labour cost savings. Factory assembly ensures consistent, leak-free quality that site installation simply cannot match. Integrated controls simplify commissioning and enable ongoing energy optimisation.
For contractors evaluating their next commercial HVAC project, the calculation is remarkably straightforward. Pre-assembled packages cost more upfront but deliver a lower total installed cost, faster project completion, and vastly superior long-term performance. If you need assistance specifying the correct package for your next commercial tender, speak to our team for dedicated professional support.
