Wilo Stratos MAXO: Error Code Diagnostics And Motor Replacement

The Wilo Stratos MAXO circulator pump powers thousands of commercial HVAC systems. When error codes flash on the display, most technicians reach for the manual instead of solving the problem. Mastering proper wilo stratos maxo error code diagnostics cuts troubleshooting time in half.

This pump uses a permanent magnet motor with integrated electronics that monitor performance continuously. When something goes wrong, the system displays specific error codes that pinpoint the issue. Understanding when to attempt a repair versus proceeding with a full permanent magnet motor replacement saves significant time and money on site.

Common Error Codes And What They Actually Mean

Heating and Plumbing World supplies these advanced units to commercial facilities that demand precise climate control. When a fault occurs, identifying the code is your first step.

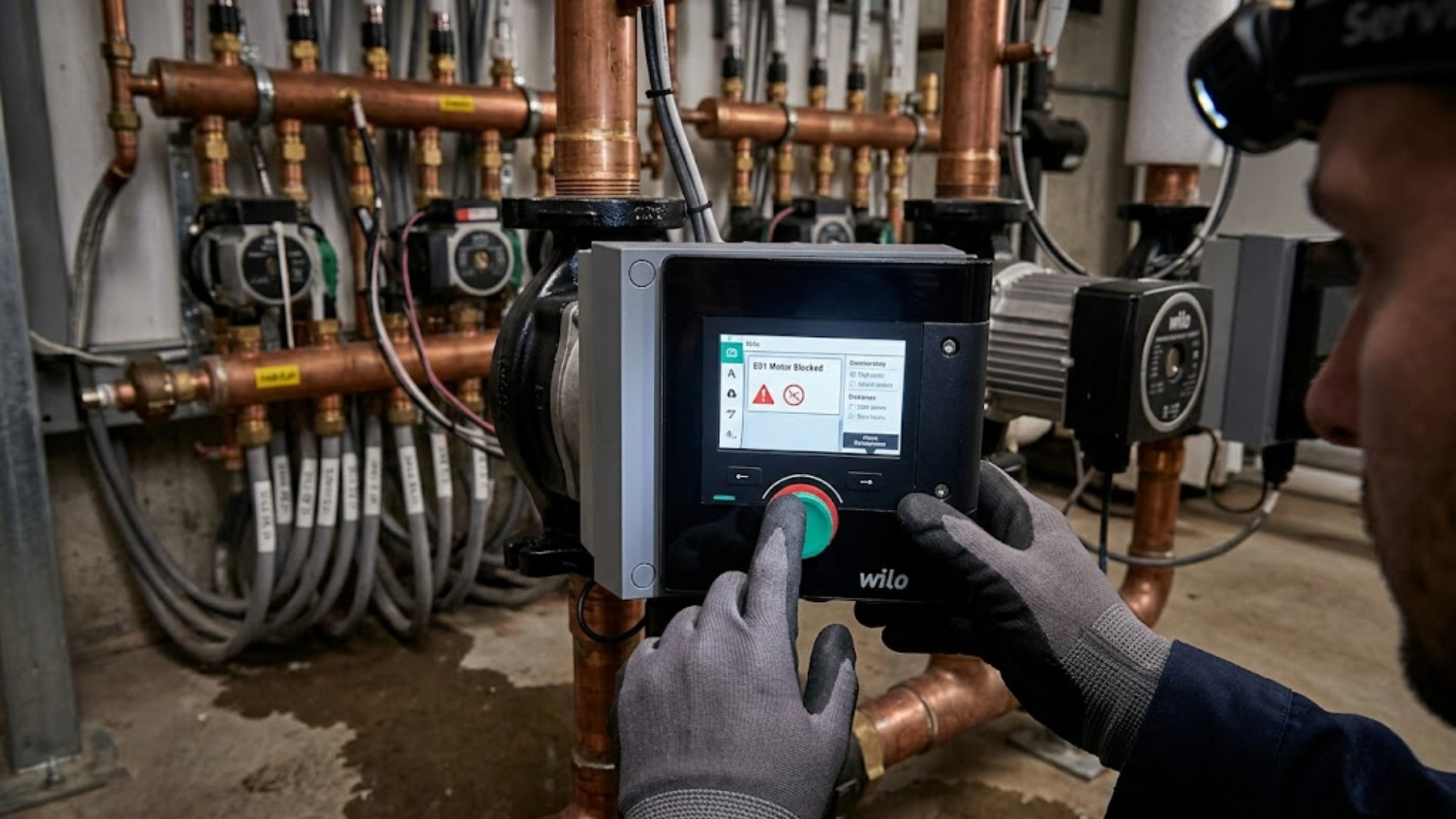

An E01 Motor Blocked fault appears when the impeller cannot rotate freely. Debris lodged in the impeller housing accounts for 70% of these cases. The remaining 30% involve bearing failure or seized mechanical seals. Before replacing the motor, isolate the pump, drain the system, and remove the motor housing to inspect the impeller. A simple cleaning often resolves an E01 Motor Blocked fault within 15 minutes, getting the system back online rapidly. If you ignore the initial warning, an ongoing E01 Motor Blocked fault will eventually burn out the drive.

An E02 Dry Running detection trigger occurs when the pump operates without sufficient fluid. The electronics detect abnormal current draw and shut down to prevent damage. Check for closed isolation valves, air locks in the system, or insufficient system pressure. Technicians see this code appear most frequently after maintenance work when someone forgets to fully open the isolation valves.

E03 Overtemperature means the motor winding temperature exceeded safe limits. This points to three common causes: inadequate ventilation around the pump, continuous operation above the pump's rated duty point, or failing motor windings.

E04 Undervoltage and E05 Overvoltage indicate power supply issues outside the pump itself. Measure voltage at the terminals during operation. These codes usually stem from loose connections, undersized cables causing voltage drop, or building electrical problems.

E07 Electronics Fault represents the broadest category and the most frustrating for quick diagnosis. This code triggers when the control electronics detect internal inconsistencies. Unnoticed terminal box moisture ingress causes 40% of E07 errors encountered in the field. Check the cable gland seal and terminal box gasket carefully. If you need replacement parts due to severe water damage, you might need to source heating spares for your overall setup.

Diagnostic Steps Before Motor Replacement

Effective wilo stratos maxo error code diagnostics starts with obvious checks that solve 30% of error codes without parts. Verify the power supply voltage and phase balance. Confirm isolation valves are fully open, and inspect cable connections for tightness and corrosion.

Think of pump error codes like a check engine light on a car dashboard. The light tells you something is wrong under the bonnet, but replacing the entire engine isn't your first step. You check the oil, test the battery, and inspect the belts first. The error code is merely a symptom pointing you toward the actual mechanical or electrical disease.

Access the pump's internal diagnostics through the control buttons. Press and hold the mode button for three seconds to enter the extended menu. Navigate to the operating hours counter and temperature readings. A pump showing a normal operating temperature but displaying E03 suggests a faulty temperature sensor rather than actual overheating. This distinction matters because sensor replacement costs £80 versus £600 for a complete motor.

Rotate the impeller by hand. It should spin freely with slight magnetic resistance. Grinding, catching, or complete seizure confirms mechanical failure. Addressing these early warning signs of pump problems prevents catastrophic damage to the wider heating network.

When Motor Replacement Becomes Necessary

On a recent hospital heating upgrade, an inexperienced engineer immediately ordered a costly replacement motor after seeing an E02 code. They swapped the entire unit, only to realise the return isolation valve had been knocked shut by another tradesperson. Opening the valve resolved the issue instantly, proving that jumping straight to replacement without investigating the root cause wastes thousands of pounds.

Replace the motor when you encounter bearing failure confirmed by rough rotation, repeated E07 electronics faults after eliminating external causes, or visible damage to motor windings. A planned permanent magnet motor replacement is much more cost-effective than repeatedly diagnosing intermittent faults on a pump approaching 80,000 hours of runtime.

Motor Replacement Procedure

Isolate the pump using both isolation valves and verify zero pressure with a gauge. The system holds residual pressure even with valves closed. Drain from the lowest point, not from the pump itself, to prevent airlocks during refilling.

Disconnect power and remove the cable gland. Label each wire before disconnecting, as the Stratos MAXO uses specific terminal assignments that vary by model. Take a photo of the wiring configuration for reference.

Pull the motor assembly straight out from the pump body. The O-ring seal creates resistance, but the motor should slide free with steady pressure. Twisting or prying damages the mating surfaces and causes leaks after reassembly.

Inspect the heating pipe systems for debris before seating the new unit. Clean the pump body cavity thoroughly with a soft brush and flushing water. Check the O-ring groove for damage or deposits that prevent proper seal seating.

Align the new assembly to execute the permanent magnet motor replacement accurately, ensuring the electrical terminal box faces the correct direction for cable routing. Push firmly until the motor seats completely flush. Torque the four mounting bolts to 8 Nm in a cross pattern. Over-tightening distorts the housing and causes leaks.

Post-Replacement Commissioning

Fill the system slowly from the lowest point, allowing air to escape through automatic air vents. Rushing this process traps air that causes an immediate E02 Dry Running detection error. This masks a successful motor replacement and sends you chasing false problems. If an E02 Dry Running detection appears, bleed the system again thoroughly.

With the system filled and vented, apply power to the pump. Verify that nearby push fit plumbing fittings are watertight under pressure. Set the pump to manual mode at 50% speed for initial operation.

Monitor for leaks around the motor housing seal and listen for unusual noise. Normal operation produces a quiet hum. Grinding, rattling, or squealing indicates installation problems.

After 10 minutes of stable operation, access the diagnostic menu and clear all stored fault codes. This prevents confusion between old errors from the failed motor and any new issues. Record the operating hours counter reading to establish a baseline for the replacement motor.

Preventing Future Motor Failures

System water quality determines motor longevity more than any other factor. The Wilo Stratos MAXO uses a wet rotor design where system water lubricates the bearings. Contaminated or aggressive water accelerates wear. Upgrading older heating system components danfoss helps maintain excellent water clarity. Maintain a pH between 8.0 and 9.5 for steel systems or 6.5 to 8.5 for copper systems.

Install the pump with adequate clearance for air circulation. The motor dissipates heat through the housing. Pumps installed in tight spaces suffer from elevated temperatures, which cuts motor life by 40%.

Check and clean the terminal box annually. Remove the cover and inspect for any terminal box moisture ingress. Tighten terminals to the specified torque. Unresolved terminal box moisture ingress creates resistance that generates heat and triggers voltage-related error codes.

Conclusion

The Wilo Stratos MAXO error code system transforms troubleshooting from guesswork into targeted diagnosis. Mastering wilo stratos maxo error code diagnostics cuts repair time and costs while improving system reliability.

Most errors resolve through systematic checks of power supply, system conditions, and basic maintenance rather than immediate motor replacement. If you need help interpreting specific fault codes or sourcing replacement parts, contact our technical team for expert guidance today.
