Eres 35 litre Potable Vessel ER-PV35
SKU
107055
£100.01
Overview
Eres 35 litre Potable Vessel ER-PV35
Introduction
Eres expansion vessels are manufactured to meet the requirements of PED 97/23/EC Directive, and BS EN 13831:2007 ‘Closed expansion vessels with built in diaphragm for installation in water’.
Eres 35 litre Potable Vessel ER-PV35
Design
- The vessels are fabricated by welding the various
- sections together which results in a very reliable
- structure suitable for internal pressures up to 10 bar.
- Epoxy coated and available in white.
- Replaceable bladder.
- AISI 304 stainless steel threaded connection.
- Pre-pressurised air chamber with EPDM elastomeric bladder.
- The internal surfaces of the vessel are epoxy coated to
- help prevent bacterial growth and corrosion.
- Suitable for temperatures up to 100˚C, resistant to ethylene or propylene glycol mixtures and has low gas
- permeability.
Technical Data
- Max. working pressure: 10 bar
- Operating temperature range: -10 to 100˚C
- Factory air pre-charge pressure: 1.5 bar
- WRAS Approved Product except for sizes indicated *
- Materials Shell: carbon steel
- Connections: 304 stainless steel
- Bladder elastomer: EPDM
- Coating: powder epoxy

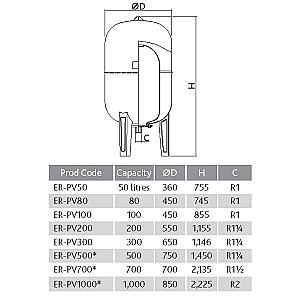

Prod Code Capacity ØD H C
ER-PV50 50 litres 360 755 R1
ER-PV80 80 450 745 R1
ER-PV100 100 450 855 R1
ER-PV200 200 550 1,155 R1¼
ER-PV300 300 650 1,146 R1¼
ER-PV500* 500 750 1,450 R1¼
ER-PV700* 700 700 2,135 R1½
ER-PV1000* 1,000 850 2,225 R2
