- SKU: E510130AA
ecocirc XLplus N 50-80 F
BRAND: Lowara
Ecocirc XLplus N 50-80 F The Ecocirc XLplus N 50-80 F stainless steel circulator features a variable speed drive and...
£1,861.09 EX. VAT
£2,233.31 INC. VAT
Login to save to wishlist
ecocirc XLplus N 50-80 F
DESCRIPTION

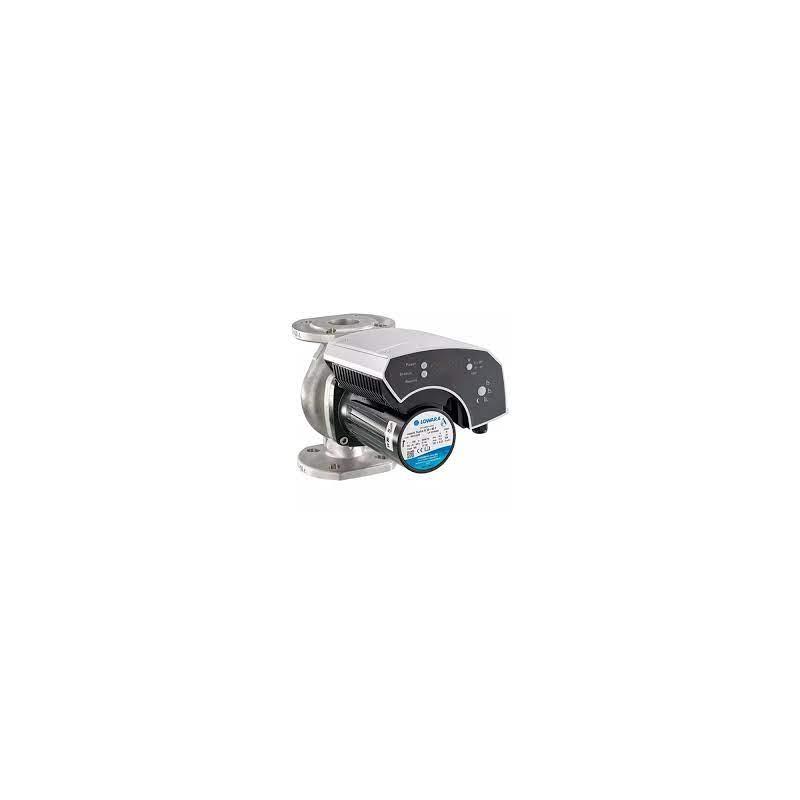

Ecocirc XLplus N 50-80 F
The Ecocirc XLplus N 50-80 F stainless steel circulator features a variable speed drive and is suitable for commercial hot water secondary circulation (HWS) and communicates with BMS systems via Modbus RTU and BACnet.
Pump Data
- Port to Port: 240mm
- Elec. Connection: Terminals
- Specific EEI: <=0,23
- Nominal Pressure: PN6/10
- Connection: Flanged / DN50
Electrical Data
- Rated Voltage: 230 V
- Frequency: 50Hz
- Protection class: IP44
- Insulation class: F
- Sound Pressure Level: <= 48dB(A)
- Rated Current: 1.7A
Materials
- Bush Bearing: Carbon, resin impregnated
- Mech.seal ball ½: Aluminum oxide
- Casing Plate: Stainless steel
- Motor Housing: Aluminium
- O-Rings: EDPM
- Pump Housing: Stainless steel
- Impeller: PPS
- Neck Ring: Stainless steel
- Rotor Can: Stainless steel
- Shaft: Stainless Steel
- Control box: Polycarbonate
PRODUCT SPECIFICATION
- • SKU: E510130AA
- • Manufacturer: Lowara
BRAND INFORMATION
Lowara is a leading manufacturer of pumps and circulators for commercial heating, cooling, and water supply systems. Their Ecocirc range offers energy-efficient variable speed circulators trusted by heating engineers. Brand highlights: • Ecocirc S, M, and L variable speed circulators for heating systems • Ecocirc XL Plus commercial circulators in single and twin configurations • HME horizontal multistage pumps for water pressure boosting • Stainless steel options for domestic hot water circulation • Wide range of sizes to match any commercial heating project Browse the Lowara range at National Pumps and Boilers for quality commercial pump solutions.
