SKU: 124379

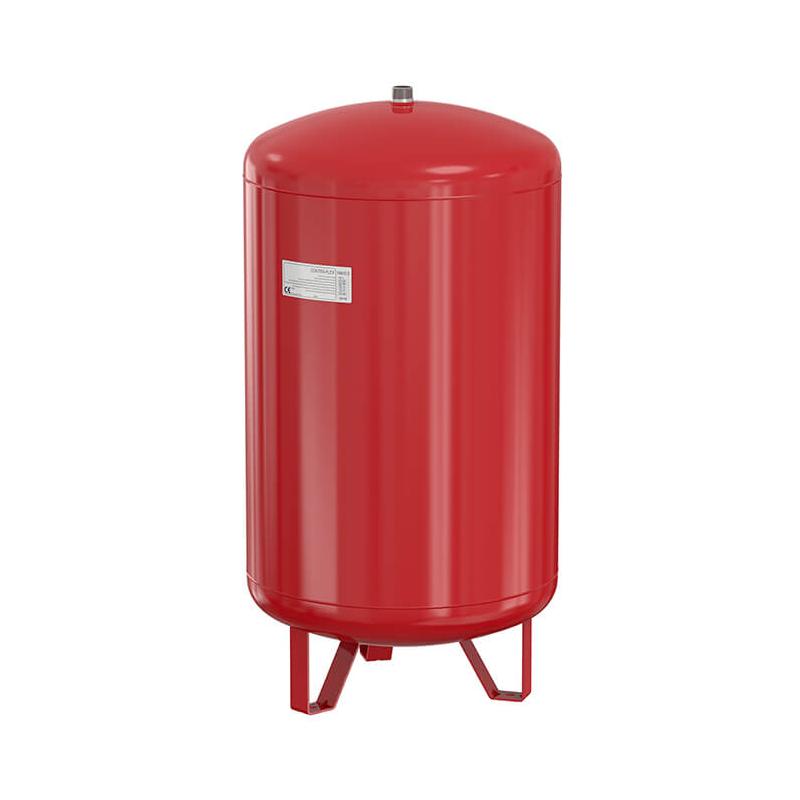

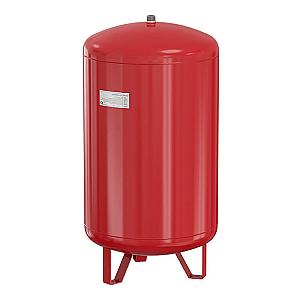

Flamco Contra-Flex exp.ves. 600/1,5 [6bar] 17162
BRAND: Flamco
Flamco Contraflex exp.ves. 600/2,5 [6bar] 26625 General Data Etim Group Pressure increase/decrease Etim Class Membrane pressure expansion vessel Product Name Contraflex exp.ves. 600/2,5...
Product Currently Unavailable
![Flamco Contra-Flex exp.ves. 600/1,5 [6bar] 17162](https://chc-media.lon1.cdn.digitaloceanspaces.com/media/13830/conversions/contraflex_150ltr_15-small.jpg)
![Flamco Contra-Flex exp.ves. 600/1,5 [6bar] 17162](https://chc-media.lon1.cdn.digitaloceanspaces.com/media/13831/conversions/contraflex_150ltr_15-small.jpg)
Flamco Contra-Flex exp.ves. 600/1,5 [6bar] 17162
DESCRIPTION
Flamco Contraflex exp.ves. 600/2,5 [6bar] 26625
General Data
- Etim Group Pressure increase/decrease
- Etim Class Membrane pressure expansion vessel
- Product Name Contraflex exp.ves. 600/2,5 [6bar]
- Brand Flamco
- Product Series Contraflex - Cubex 10bar 100-1000ltr
- Product Type 600
Attributes
- Pre-pressure [bar] 2.5
- Final pressure [bar] 6
- Volume [l] 600
- For tap water No
- With fixed wall support No
- Position, vertical Yes
- Position, horizontal No
- With legs Yes
- Nominal inner diameter, expansion connection 1 inch (25)
- Outer pipe diameter, expansion connection [mm] 33.7
- Max. medium temperature (continuous) [°C] 70
- Connection Outer thread conical BSPT-R (ISO 7-1)
- Colour Red
- With exchangeable membrane No
- Diameter [mm] 790
- Height [mm] 1538
PRODUCT SPECIFICATION
- • SKU: 124379
- • Manufacturer: Flamco
