Oil Filter and Element 1/4" Type 489

DESCRIPTION

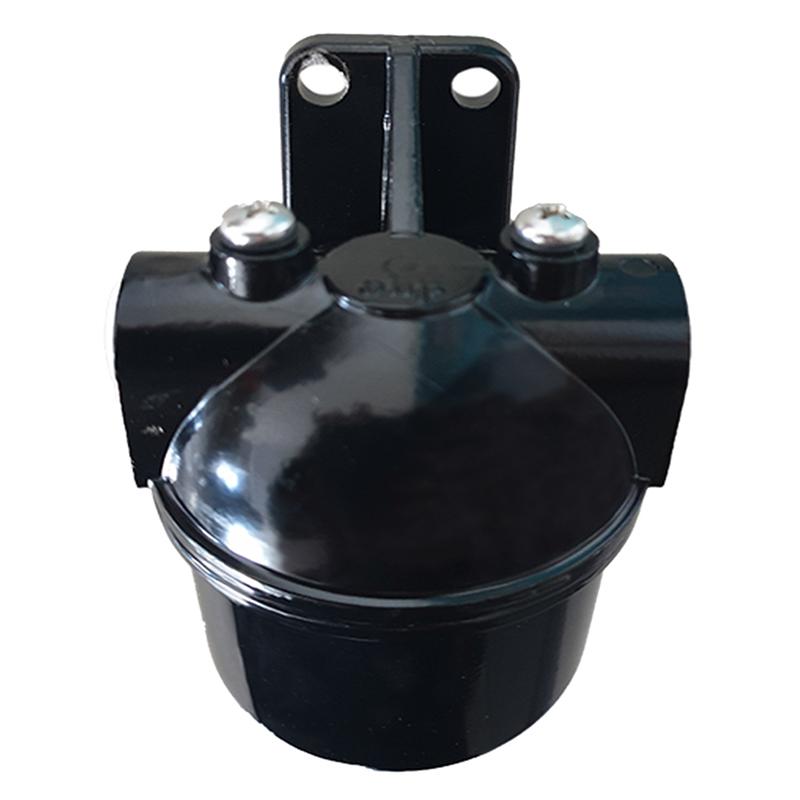

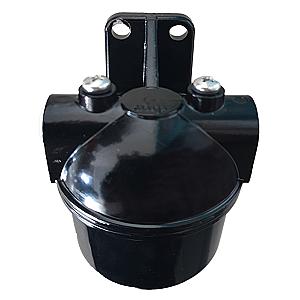

Bracket mounting Oil Filter with pleated paper filter element available with 3/8” or 1/4" connections. 1. Mounting: 2-hole Bracket with easy alignment fixing holes. 2. Construction: All Metal Body and Head. Connections: 3/8” or 1/4” BSPP Female/Female, fitted with port plugs Filter Element: Pleated Paper industry standard 489 type filter element 3. Filtration Rating: 10 Micron 4. Seals: Biofuel compatible up to B35 5. Nominal Throughput: 20LPH 6. Maximum Pressure: 3.5 Bar 7. Corrosion Resistance: Black Epoxy Paint Finish 8. Air Vent Screws: 1 x Inlet 1 x Outlet Bowl Retention: 9. Central Hexagon Bolt Bowl: Sealing arrangement contains fuel when bowl is removed for servicing 10. Flow Direction: Reversable

PRODUCT SPECIFICATION
