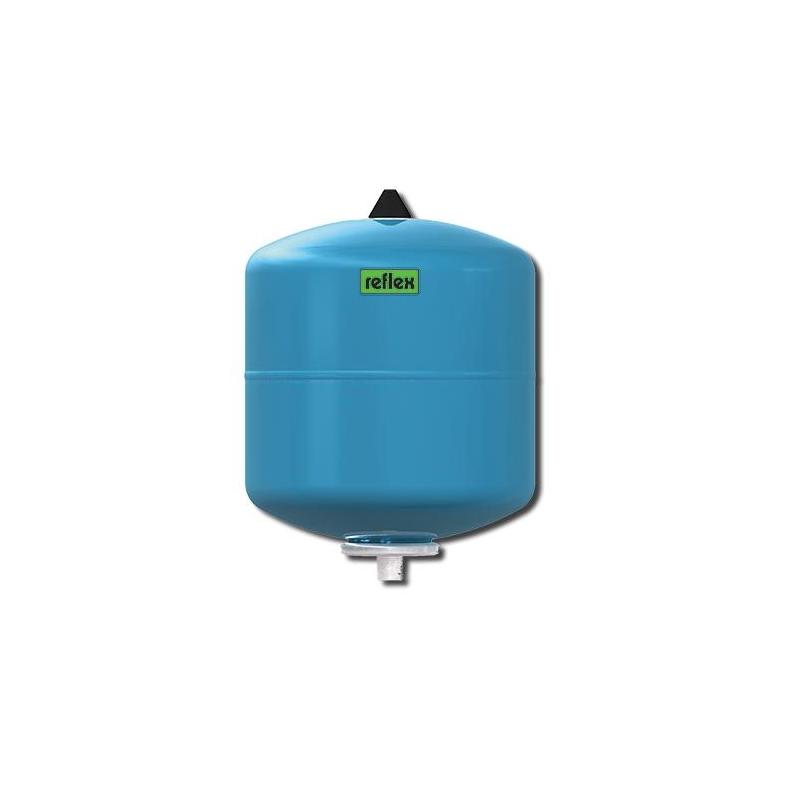

Reflex 8 Litre Potable Vessel PV8W

DESCRIPTION

How It Works 8 litre

In a closed hot water circuit, the water cannot be compressed so any increase in volume, created by an increase in temperature, has to be accommodated by an expansion vessel.

When water is cold, the pre-charge pressure forces the bladder to collapse until the pump is started when the bladder starts to inflate.

As the temperature in the system increases, with the associated increase in pressure and volume, the expanded water enters the bladder creating additional volume and lowering the pressure.

Technical Specification

Max. working pressure:                          10 bar

Max. operating temperature:                70˚C

Factory air pre-charge:                           4.0 bar - nitrogen

Replaceable bladder - sizes:                   50 litres and larger except 140 litres size

System water connection thread:          BE EN ISO 228 - male parallel 140 litre size:   BE EN 10226 - male taper

PRODUCT SPECIFICATION

• • SKU: 120083
• • Manufacturer: Reflex
