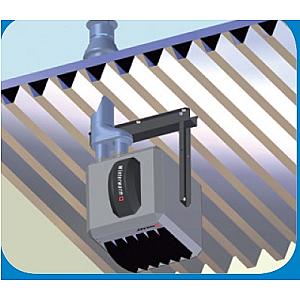

The Space-Ray SUH-S: efficiency, energy saving and total comfort control through unique design characteristics. An indirect gas fired unit heater with innovative burner and heat exchanger combination, provided with the latest control technology.
The compact measurements and the high level of comfort make the SUH-S suitable for many applications in all environments such as factories, industrial units, distribution centres / warehouses, garages, showrooms, retail stores, sports centres and even in restaurants
| Technical Specifications | |||||||
| DESCRIPTION | Unit | SUH-S10 | SUH-S20 | SUH-S30 | SUH-S40 | SUH-S50 | SUH-S60 |
| Nominal heat input max. | KW | 14 | 22.8 | 32 | 44 | 55 | 66 |
| Nominal heat input min. | KW | 9 | 14.8 | 20.5 | 26.4 | 33 | 39.6 |
| Nominal heat output max. | KW | 12.8 | 20.8 | 29.2 | 40.2 | 49.9 | 60.5 |
| Nominal heat output min. | KW | 8.3 | 13.8 | 19.1 | 24.4 | 30.8 | 37 |
| Air output max. | m3/h | 1150 | 2070 | 2600 | 4370 | 5150 | 6300 |
| Throw horizontal max. | m | 12 | 16 | 23 | 26 | 28 | 30 |
| Throw vertical max. | m | 5 | 5 | 6 | 7 | 8 | 11 |
| Gas connection | G | ½” | ½” | ½” | ¾” | ¾” | ¾” |
| Supply pressure G20 (H) | mbar | 20 | 20 | 20 | 20 | 20 | 20 |
| Max. Gas consumption G20 (H) | m3/h | 1.5 | 2.4 | 3.4 | 4.7 | 5.8 | 7 |
| Max. Gas consumption G31 | kg/hr | 1.1 | 1.8 | 2.5 | 3.5 | 4.4 | 5.3 |
| Electrical supply | V | 230 | 230 | 230 | 230 | 230 | 230 |
| Power consumption | W | 250 | 250 | 250 | 450 | 450 | 600 |
| Noise level (4m. in front of unit) | dB(A) | 42 | 45 | 45 | 46 | 47 | 49 |
| Minimum suspension height | m | 1.7 | 1.7 | 1.7 | 2.7 | 2.7 | 2.7 |
| (horizontal air distribution) | |||||||
| Minimum suspension height | m | 4 | 4 | 4 | 5 | 6 | 6 |
| (vertical air distribution) | |||||||
| Weight | kg | 36 | 37 | 38 | 78 | 80 | 82 |
| Dimensions flue terminal | mm | 80 | 80 | 80 | 100 | 100 | 100 |
| Max. length flue terminal (without elbows) |
m | 8 | 8 | 8 | 8 | 8 | 8 |
